Best Monitors for Xbox One X in 2027: 4K HDR & 1440p 120Hz Console Buying Guide
By Paolo Reva | Last Updated October 18, 2026 (2027 Edition)
When Microsoft released the Xbox One X, it rewrote the rules of console performance by packing a 6 TFLOP graphics processor, 12GB of high-speed GDDR5 memory, and hardware-accelerated 4K output into an impossibly compact chassis.
Years later, the Xbox One X remains one of the smartest, most cost-effective 4K gaming and multimedia machines you can place on a desk. Between backward compatibility, Xbox Game Pass, cloud gaming, and its integrated 4K Ultra HD Blu-ray drive, it delivers reference-grade entertainment without demanding a four-figure PC tower.
However, pairing the Xbox One X with the right monitor requires understanding its specific display engine. Unlike modern graphics cards or the newer Xbox Series X that push HDMI 2.1 bandwidth, the Xbox One X is built around an HDMI 2.0b output.
That hardware baseline creates two distinct gaming profiles:
- Pristine 4K UHD (3840x2160) at 60Hz: Outputting rich HDR10 and Dolby Vision colors for open-world single-player titles and 4K media streaming.
- Blistering 1440p (2560x1440) at 120Hz: Microsoft introduced native 1440p 120Hz support over HDMI 2.0, giving competitive players (Call of Duty, Fortnite, Apex Legends) halved frame persistence and reduced input latency.
- AMD FreeSync Over HDMI: Synchronizing panel refresh rates with fluctuating console frame rates to eliminate screen tearing and judder.
Whether you are building a dedicated console battlestation, seeking a hybrid PC/Xbox display, or choosing a screen that will seamlessly transition if you eventually upgrade to an Xbox Series X, here are the absolute best monitors for the Xbox One X in 2027.
What to Look for in an Xbox One X Monitor (2027 Buying Checklist)
Core Hardware Requirements:
- HDMI 2.0 or HDMI 2.1 with HDCP 2.2: Mandatory for outputting native 4K at 60Hz and streaming copyright-protected 4K HDR content on Netflix, Disney+, and 4K Blu-ray. Monitors equipped with HDMI 2.1 ports will work flawlessly with the Xbox One X today and offer a future-proof path to 4K 120Hz if you upgrade to a Series X later.
- AMD FreeSync Over HDMI: Many PC monitors only support FreeSync across DisplayPort. For the Xbox One X, the display must support Variable Refresh Rate (VRR) or AMD FreeSync over its physical HDMI inputs (typically covering 40Hz to 60Hz in 4K, or 48Hz to 120Hz in 1440p).
- Low Input Latency (< 10ms): While modern TVs have improved game modes, a high-performance gaming monitor consistently keeps input lag between 2ms and 9ms, making aiming, driving, and timing-critical combat noticeably snappier.
- Audio Passthrough (3.5mm Headphone Jack or Built-In Speakers): The Xbox One X removed the dedicated optical audio port on later revisions, so having a monitor with a 3.5mm audio output or clean built-in speakers makes routing desk sound effortless.

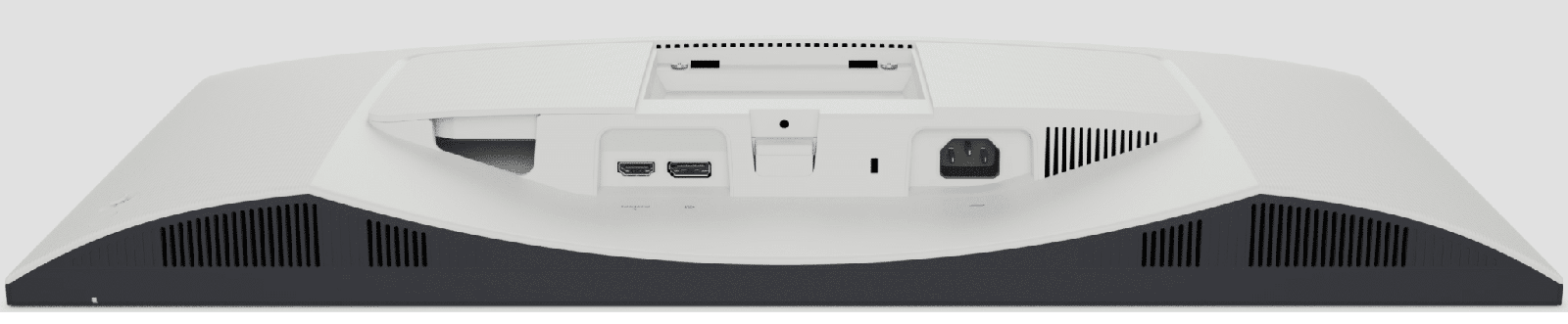

1. Best Overall 4K Monitor for Xbox One X: Dell S2725QS
If you want the cleanest balance of razor-sharp 4K pixel density, fluid refresh rates, and unbeatable everyday reliability, the Dell S2725QS is our top recommendation for the Xbox One X.
Spanning a 27-inch diagonal, the S2725QS squeezes 3840x2160 resolution into a tight 163.2 PPI canvas. Fine textures in titles like Forza Horizon, Gears 5, and Red Dead Redemption 2 look incredibly sharp without pixelation. Crucially, Dell equipped this model with an upgraded 120Hz Fast IPS panel and dual HDMI ports supporting AMD FreeSync.
When connected to your Xbox One X, you can toggle between native 4K at 60Hz for cinematic fidelity, or drop to 1440p at 120Hz for high-speed multiplayer. Because it natively refreshes up to 120Hz, it is also fully prepared if you connect an Xbox Series X, PlayStation 5, or gaming PC down the line.

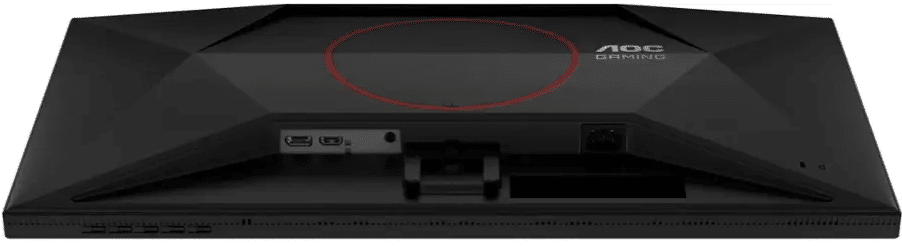

2. Best Budget 1440p 120Hz HDR Monitor: AOC Q27G3XMN / Q27G40XMN
For gamers who prioritize dramatic HDR contrast and smooth 120Hz competitive gameplay over standard edge-lit panels, the AOC Q27G3XMN is an absolute game-changer in the budget tier.
Unlike typical sub-$300 monitors that slap on meaningless "HDR400" stickers while lacking localized dimming, the AOC features a genuine Full-Array Local Dimming (FALD) Mini-LED backlight with 336 individual dimming zones. Combined with a high-contrast Fast VA panel and Quantum Dot color enhancement, it produces over 1,000 nits of peak HDR brightness with deep, inky blacks.
The Xbox One X recognizes the AOC's HDMI port immediately, allowing you to select 1440p at 120Hz with AMD FreeSync enabled. Dark, atmospheric games like Metro Exodus, Hellblade, and Dead Space gain genuine HDR punch that obliterates standard budget monitors.
3. Best Curved 1440p Immersion Screen: Samsung Odyssey G65B
If you prefer curved immersion that wraps around your peripheral vision during cockpit simulators, racing games, or action adventures, the Samsung Odyssey G65B stands in a league of its own.
Featuring an aggressive 1000R curvature, this 32-inch 2560x1440 display matches the natural contour of human eye optics. Its Fast VA panel boasts a native 2,500:1 static contrast ratio, ensuring shadow depth without the gray backlight wash common to budget IPS displays.

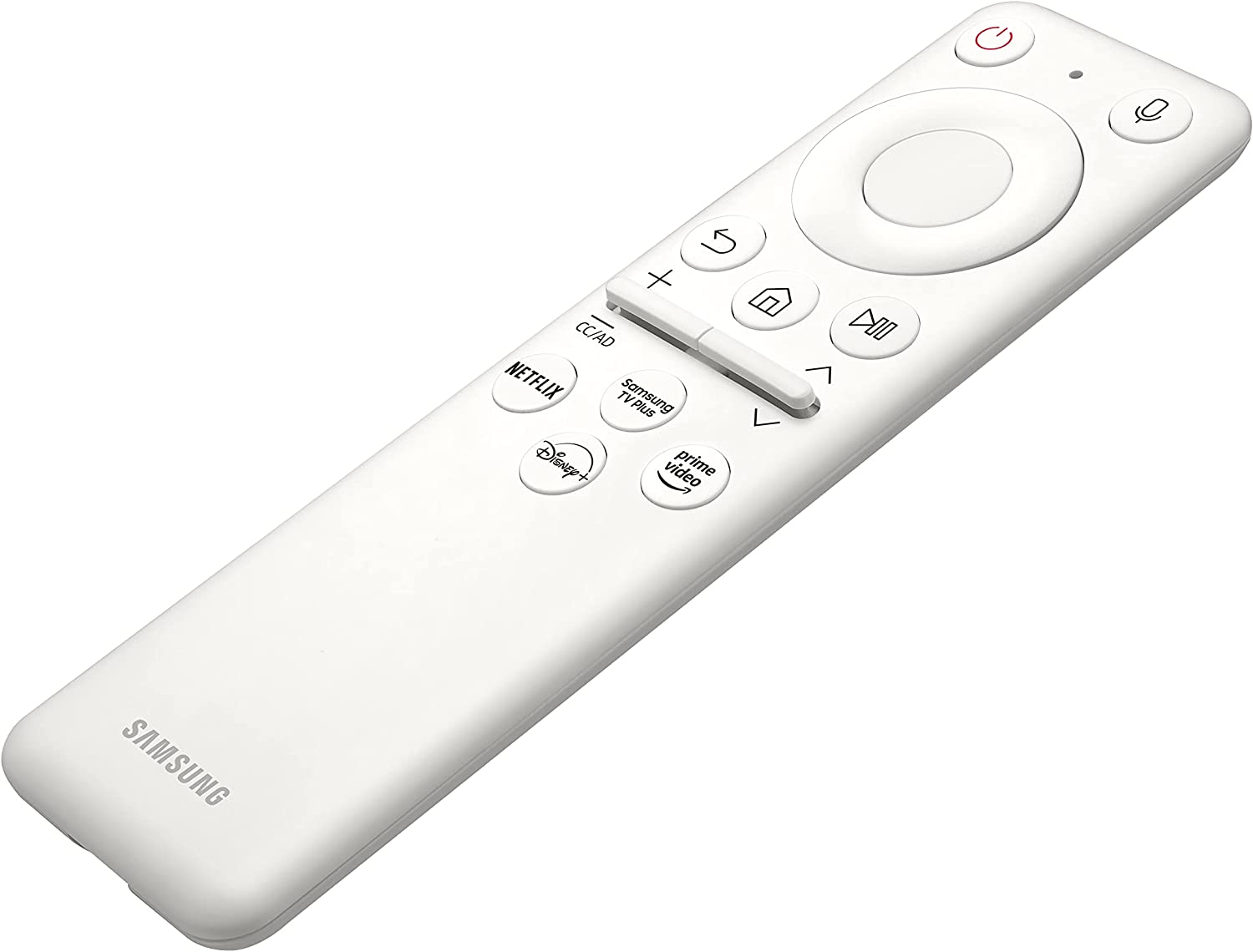

On the Xbox One X, the G65B runs at a smooth 1440p 120Hz over HDMI with FreeSync Premium Pro active. As an added bonus, Samsung integrates its smart TV operating system directly into the monitor, complete with a dedicated gaming hub, streaming apps, and a remote control—making it a perfect hybrid TV/monitor replacement for bedrooms and apartments.

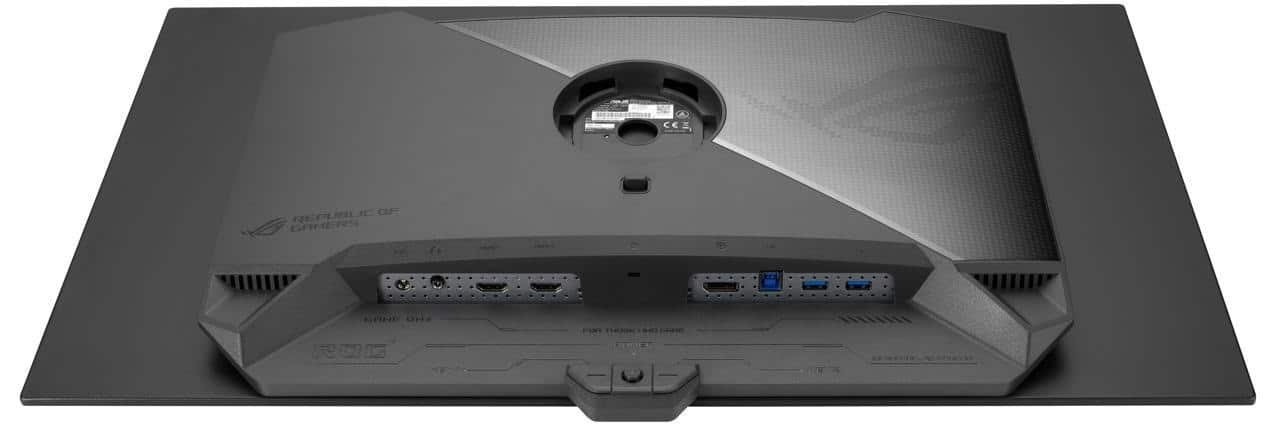

4. Best 1440p Esports OLED: ASUS ROG Strix OLED XG27AQDMG
For the player who demands the absolute fastest response times and infinite contrast, the ASUS ROG Strix OLED XG27AQDMG is the undisputed champion of 1440p esports.
The XG27AQDMG features LG Display's 3rd-Gen WOLED glass paired with an exclusive TrueBlack Glossy finish. Because it retains an internal circular polarizing layer, its black levels stay at a true 0.0000 cd/m² even in a sunlit room, avoiding the purple tint common to unpolarized QD-OLED screens.
With a near-instantaneous 0.03ms pixel response time, motion blur is eliminated. When running Halo: The Master Chief Collection or Call of Duty at 1440p 120Hz, fast-turning camera pans remain crystal clear. ASUS also built in a custom heatsink and dedicated OLED Care firmware to protect against burn-in during long sessions.
5. Ultimate 4K Mini-LED Flagship: BenQ MOBIUZ EX321UX
If you want a large 32-inch 4K screen that delivers massive HDR brightness without any risk of OLED burn-in, the BenQ MOBIUZ EX321UX is the undisputed console powerhouse.
Engineered with 1,152 full-array local dimming zones on a 4K 144Hz Fast IPS panel, the EX321UX sustains over 1,000 nits across full-screen white scenes. Unlike OLED monitors that dim to 220 nits under high APL daylight, this display remains vibrantly bright in any room.
Crucially for console setups, the EX321UX includes HDMI 2.1 ports with eARC (Enhanced Audio Return Channel) support. You can connect your Xbox One X directly to the monitor and pass uncompressed Dolby Atmos audio straight to a high-end soundbar or AV receiver with zero lip-sync delay.

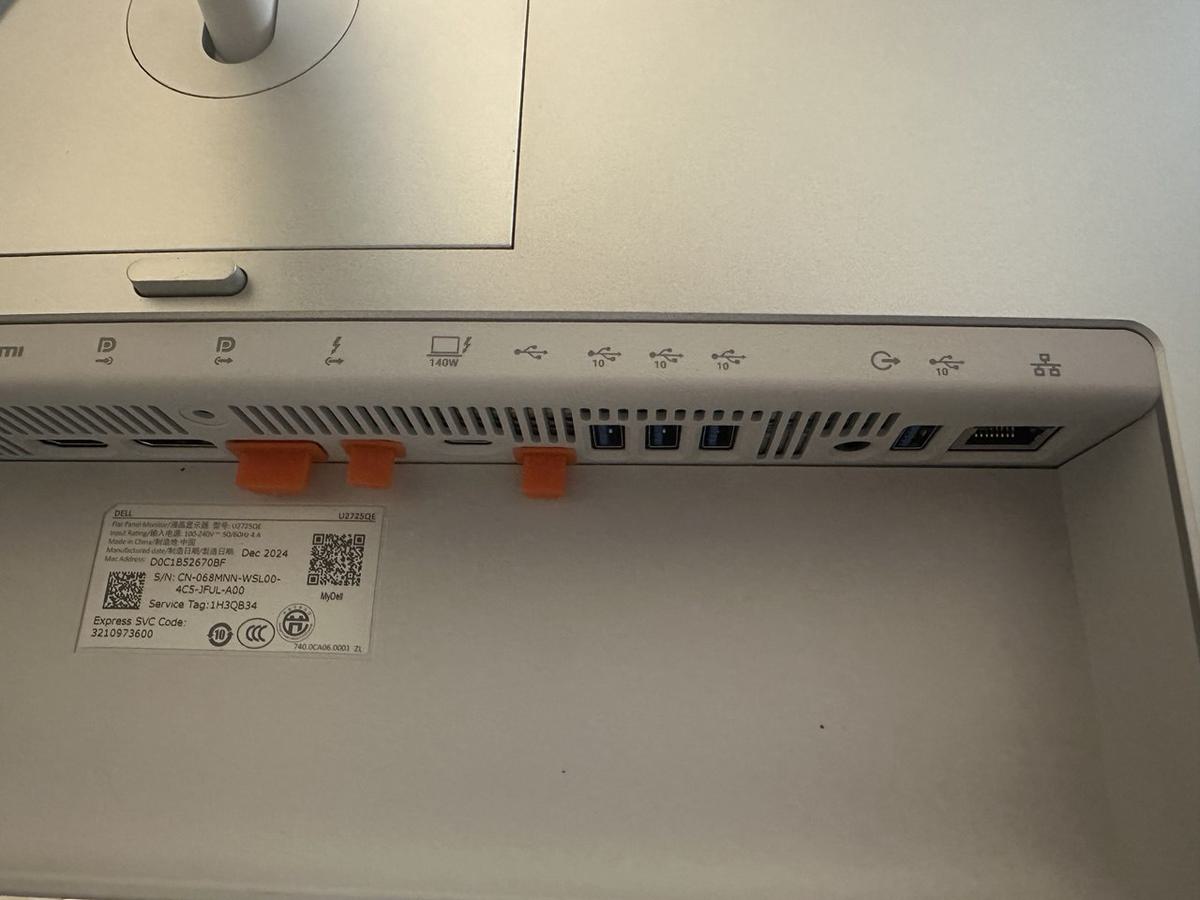

6. Best Hybrid Work & Play 4K Monitor: Dell UltraSharp U3223QE
For professionals who share their desk between a work laptop and an Xbox One X, the Dell UltraSharp U3223QE delivers unmatched productivity and visual accuracy.
The U3223QE features LG Display's IPS Black technology, delivering a 2,000:1 static contrast ratio—double the contrast of conventional IPS screens. Deep shadows, space environments, and nighttime game scenes appear rich and well-defined without IPS glow.
Equipped with a built-in 90W USB-C hub, RJ45 Ethernet, and dual HDMI ports, you can dock your work laptop with a single cable while leaving your Xbox One X permanently connected via HDMI. When 5:00 PM hits, a quick input tap switches you from spreadsheets straight into native 4K HDR gaming.
Xbox One X Monitor Comparison Matrix (2027)
The table below contrasts our top picks across panel technology, native resolution, supported Xbox video modes, FreeSync ranges, and connectivity:
| Monitor Model | Screen Size | Resolution | Panel Tech | Xbox Video Mode | FreeSync over HDMI? | HDR Performance |
|---|---|---|---|---|---|---|
| Dell S2725QS | 27 Inches | 3840 x 2160 | Fast IPS | 4K @ 60Hz / 1440p @ 120Hz | Yes (48–120Hz) | HDR10 Entry |
| AOC Q27G3XMN | 27 Inches | 2560 x 1440 | FALD Mini-LED | 1440p @ 120Hz | Yes (48–144Hz) | DisplayHDR 1000 |
| Samsung Odyssey G65B | 32 Inches | 2560 x 1440 | 1000R Curved VA | 1440p @ 120Hz | Yes (FreeSync Pro) | DisplayHDR 600 |
| ASUS ROG OLED XG27AQDMG | 27 Inches | 2560 x 1440 | Glossy WOLED | 1440p @ 120Hz | Yes (0.03ms VRR) | True Black 400 |
| BenQ MOBIUZ EX321UX | 32 Inches | 3840 x 2160 | 1152-Zone Mini-LED | 4K @ 60Hz / 120Hz | Yes (HDMI 2.1 VRR) | DisplayHDR 1000 |
| Dell UltraSharp U3223QE | 31.5 Inches | 3840 x 2160 | IPS Black | 4K @ 60Hz | Yes (Basic Sync) | DisplayHDR 400 |
How to Configure Your Xbox One X for Optimal Monitor Performance
To ensure you are getting maximum resolution, refresh rate, and dynamic range, follow this quick configuration walkthrough on your Xbox One X:
Xbox One X Video Settings Step-by-Step:
- Navigate to Settings > General > TV & display options.
- Under Display:
- For single-player immersion on a 4K display: Set Resolution to 4K UHD (Refresh rate locks to 60Hz).
- For competitive multiplayer (Warzone, Apex, Fortnite): Set Resolution to 1440p and change Refresh rate to 120Hz.
- Under Advanced > Video modes, verify the following are checked:
- Allow 4K: Enables 4K rendering and media playback.
- Allow HDR10: Enables high dynamic range in compatible games.
- Allow Variable Refresh Rate: Enables AMD FreeSync over HDMI to eliminate frame tearing.
- Allow YCC 4:2:2: Enable if your monitor exhibits color clipping in 4K HDR.
- Under Video fidelity & overscan: Set Color depth to 24 bits per pixel (8-bit). The console automatically handshakes up to 10-bit HDR when launching HDR games without forcing bandwidth compression on SDR desktop menus.
Decisive Verdict: Which Monitor Should You Buy?
- For the best balance of value, sharpness, and future-proofing: The Dell S2725QS is the top recommendation. You get crisp 4K 163 PPI visuals, 120Hz Fast IPS fluidity, and dual HDMI ports ready for both Xbox One X and next-gen hardware.
- For jaw-dropping HDR under $300: The AOC Q27G3XMN delivers 1,000-nit Mini-LED local dimming and smooth 1440p 120Hz FreeSync performance that punches way above its price tag.
- For competitive esports and instantaneous motion: The ASUS ROG Strix OLED XG27AQDMG combines 0.03ms response times with inky TrueBlack Glossy contrast.
- For big-screen cinema and high-end sound: The BenQ MOBIUZ EX321UX offers 1,152 Mini-LED zones and HDMI 2.1 eARC audio passthrough for the ultimate desk entertainment centerpiece.
